Cast iron anodes

High silicon cast iron anode properties

Types

C(%)

Si(%)

Cr(%)

Cu(%)

Mo(%)

Mn(%)

P(%)

S(%)

High Si

0.7-10.5

14-16

0

0.5

0.2

0.5-0.8

0.1-0.25

0.1

High Si with Cr

0.7-10.5

14-16

3.25-5

0.5

0.2

0.5-0.8

0.1-0.25

0.1

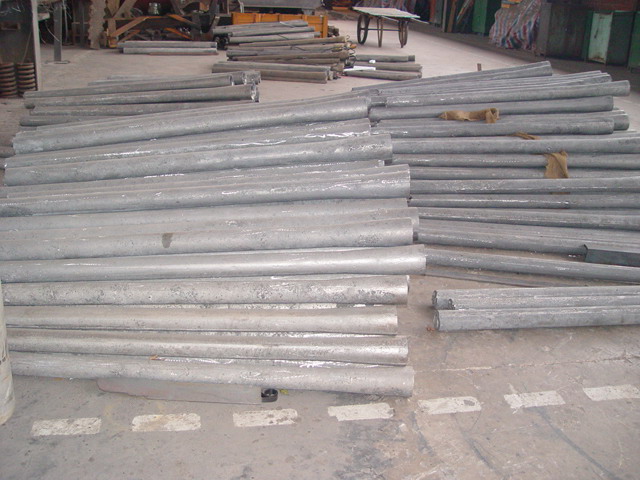

1. High silicon cast iron anodes......solid rods

Diameter  mm (in)

Weight

Kg (lb)

Anode

End dia

Length

38.1

(1.5)

63.5 (2.5)

910 (36)

8.12 (17.9)

1220 (48)

11.00 (24.25)

1524 (60)

13.00 (28.66)

75.0 (3.0)

910 (36)

9.23 (20.35)

1220 (48)

11.60 (25.57)

1524 (60)

13.90 (30.64)

50.8

(2.0)

63.5 (2.5)

910 (36)

12.82 (28.26)

1220 (48)

17.03 (37.54)

1524 (60)

21.10 (46.52)

75.0 (3.0)

910 (36)

13.99 (30.84)

1220 (48)

18.20 (40.12)

1524 (60)

21.40 (47.18)

63.5

(2.5)

88.0 (3.5)

910 (36)

21.06 (46.43)

1220 (48)

27.64 (60.94)

1524 (60)

34.10 (75.18)

76.2

(3.0)

100.0 (4.0)

910 (36)

30.85 (68.01)

1220 (48)

39.00 (85.98)

1524 (60)

50.00 (110.00)





2. High silicon cast iron anodes......tubes

Outside Diameter

Wall thickness

Length

58mm

10mm

2133mm

75mm

10mm

1500mm

95mm

10mm

2133mm

100mm

10mm

1500mm

100mm

10mm

2000mm

121mm

10mm

2133mm

150mm

 10mm

2500mm
